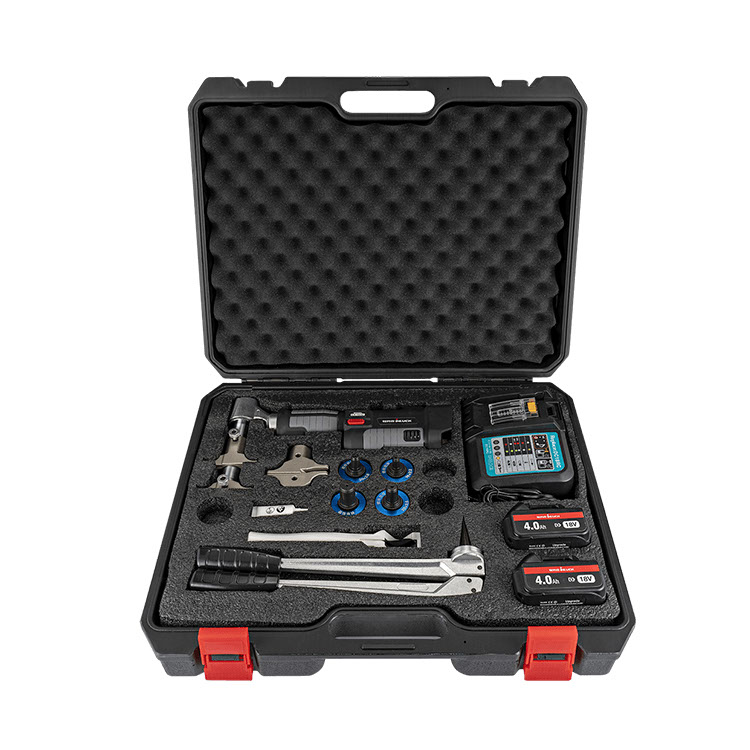

The set of tools integrates pipe cutting, pipe expansion, and push and pulling, and can easily complete all installation processes.
Product parameters
| name | Electro-hydraulic slip tool |
| Model | DH-1240 |
| specification | • Ø16mm • Ø20mm • Ø25mm • Ø32mm |
| Crimping force | 19KN |
| itinerary | 38mm |
| Time/working hours | 3～5s（Depends on the size of the specification） |
| Voltage/capacity | 18V / 4.0Ah |
| Charging voltage | •AC 100V～240V •50～60HZ |
| Charging time | 40 minutes |
| Ambient temperature | -10～40°C |
| Slip range | Mould 16 20 25 32 PEX and multi-layer composite pipe |
| peculiarity | The figure-7 electro-hydraulic sliding tool with bent handle can rotate the crimping direction at multiple angles (360° steering in two places), which is more suitable for use in narrow spaces and wall corners, simple operation, and more assured of sliding belt pressure protection connection. |
| wrap | Plastic box |
| battery | 2个 |
| charger | 1个 |
| weight | 11.5kg（Batteries and head included） |
| Singles |  |
| suit |  |
Packing method
| Packing quantity | 1set |
| Package size | 605*140*505mm |
| weight | 12kg |
